Factory wholesale Ice Cream Candy Pouch Packing Machine - Automatic Horizontal Flow Pillow Bakery Bread Biscuit Cookies Packing Machine – Yidao Detail:

Automatic Horizontal Flow Pillow Bakery Bread Biscuit Cookies Packing Machine

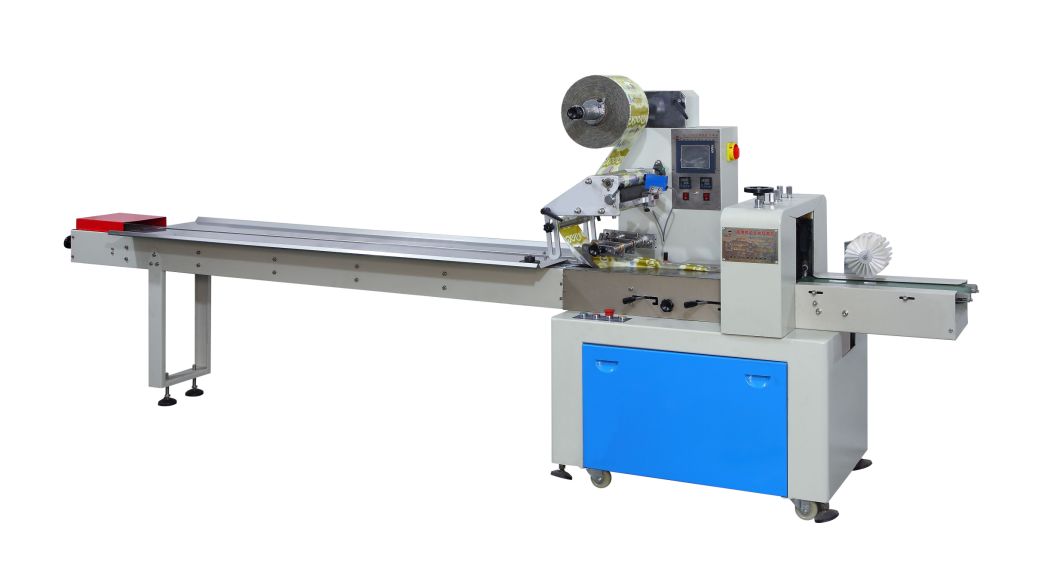

1. Product image:

Automatic Horizontal Flow Pillow Bakery Bread Biscuit Cookies Packing Machine

Automatic Horizontal Flow Pillow Bakery Bread Biscuit Cookies Packing Machine
Automatic Horizontal Flow Pillow Bakery Bread Biscuit Cookies Packing Machine
Automatic Horizontal Flow Pillow Bakery Bread Biscuit Cookies Packing Machine

2. Scope of application:
Automatic Horizontal Flow Pillow Bakery Bread Biscuit Cookies Packing Machine

Automatic Horizontal Flow Pillow Bakery Bread Biscuit Cookies Packing Machine



3. Features:

Compact structure, stable function and simple operation.
Double frequency converter controller,length of package will cut immediately once setting, adjustment needless, saving time and film.
It adopts imported electric appliance, touch manmachine interface, convenient parameter setting.
Self-cheching function, trouble can be read easily. High sensor photoelectric color chart tracking, make the cutting position more correctly.
Dependant temperature PID controlling suitable for various materials of packagingmenbrane.Position stop function, no adhesive and no waste of membrane.
Clean rotation system, more reliableoperation and more convenient maintenance.
All the controlling operates by the software,convenience for function ad-justment and technical up grading.



4. Main Technical Parameter:

Model KD-260 KD-350 KD-450
Max film width 260mm 340mm 450mm
Max packaging capacity
(according to its material to confirm)
40-250 times/min 40-200 times/min 50-180 bags/min
Suitable film thickness 0.03-0.06mm 0.03-0.06mm 0.03-0.06mm
Length of bags 65-330mm 65-330mm 65-350mm
Packaging with 30-110mm 30-160mm 50-200mm
Packaging height ≤55mm ≤55mm 10-80mm
Total power 2.4Kw 220V 3.2Kw 220V 2.7Kw 220V 50/60Hz
Overall dimensions(L x W x H) 4000 x 920x1500mm 4100 x 1050x1560mm 4100 x 1050x1560mm
Weight 500KG 600KG 680KG





5. Performance And Characteristics

1.Compact structure, stable performance, easy maintenance. The double frequency conversion control, bag length is set is cut, don’t need to adjust empty, one pace reachs the designated position, time-saving membrane uses the Sifang imported frequency converter
2.Touch human-machine interface, convenient and quick parameter setting fault self-diagnosis function, fault shows at a glance.Look the Gao Gan degree of photoelectric tracking,
3.Temperature independent PID control, better suited to a variety of material coated.Positioning stop function, non-stick knives, at no cost

4. The rotation system is concise, more reliable, more convenient maintenance.
Adopt import stepper motor. The noise is small, the tracking accuracy!Optional (servo motor)
5. All control by the software implementation, convenient function adjustment and technology upgrade, never backward.6. The rotation system is concise, more reliable, more convenient maintenance.
Adopt import stepper motor. The noise is small, the tracking accuracy!Optional (servo motor)
6. All control by the software implementation, convenient function adjustment and technology upgrade, never backward.



6. Factory tour:
Automatic Horizontal Flow Pillow Bakery Bread Biscuit Cookies Packing Machine

Expot Packaging:
Automatic Horizontal Flow Pillow Bakery Bread Biscuit Cookies Packing Machine

RFQ:


Product detail pictures:

Factory wholesale Ice Cream Candy Pouch Packing Machine - Automatic Horizontal Flow Pillow Bakery Bread Biscuit Cookies Packing Machine – Yidao detail pictures

Factory wholesale Ice Cream Candy Pouch Packing Machine - Automatic Horizontal Flow Pillow Bakery Bread Biscuit Cookies Packing Machine – Yidao detail pictures
