OEM China Electric Capsule Filling Machine - Automatic Chocolate Butter Honey Oil Blister Packing Machine – Yidao Detail:

Dpp-80 Pharmaceutical Equipment Liquid Blister Packaging Machine1. Product Image
Automatic Chocolate Butter Honey Oil Blister Packing Machine

2. Features:
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device  (Omron Sensor) Dpp-80 Manufacturing Pharmaceutical Packing Packaging/Package Pack Machine, Blister Packing Machine for number of medicines according to the user’s requirement.
3. It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
5. The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.

3. Technical specifications:

Model DPP-80
Punch frequency 10-20times/min
Production capacity 2400plates/hour
Max. Forming area & Depth 105×70(standard depth <=15mm), Max. Depth 25mm( As adjusted
Standard Stroke range 30-80mm(can be designed as per user’s required)
Standard plate size 80x70mm  (can be designed as per user’s required)
Air pressure 0.4-0.6Mpa
Compressed air required Air compressor≥0.3m3/min
Total power supply 220V  50Hz  2.8Kw
Main motor 0.75Kw
PVC hard Film 0.15-0.5*110 (mm)
PTP Aluminum film 0.02-0.035*110 (mm)
Dialysis Paper 50-100g*110(mm)
Mould cooling Tap water or Recycling water
Overall Dimension 1840x900x1300 (mm)(LxWxH)
Weight Net weight 480kg      Gross weight: 550kg
Noise index <75dBA

4. Machine details:
Automatic Chocolate Butter Honey Oil Blister Packing Machine
Option
1. PLC  + Touch
2. Indentation device
3. Ornaic glass cover
4. cursor positioning
5. Machinery forming
6. Recovery device

5. Samples:
Automatic Chocolate Butter Honey Oil Blister Packing Machine

6. Factory tour:
Automatic Chocolate Butter Honey Oil Blister Packing Machine

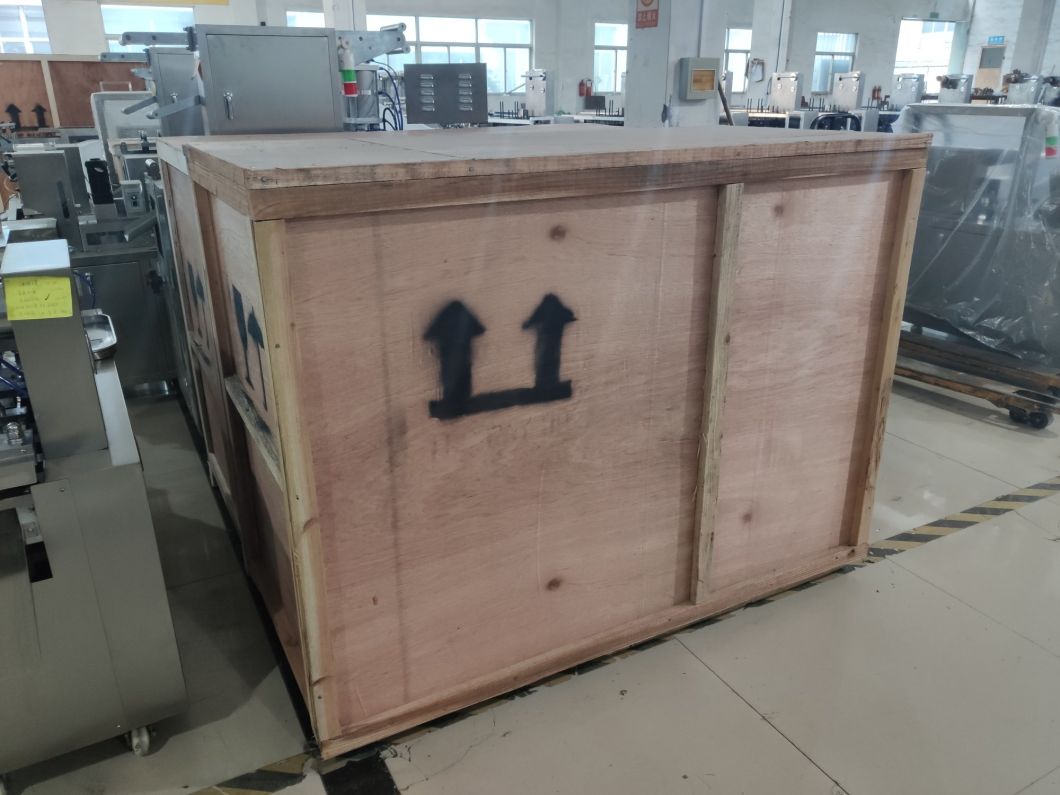

7. Packaging:
Automatic Chocolate Butter Honey Oil Blister Packing Machine

8. RFQ:
1. Quality warranty
One year warranty, free replacement due to quality problems, non-artificial reasons.

2. After-sales service
If need seller to provide service at customer’s plant. buyer need to bear visa charge, air ticket for round trips, accommodition, and daily salary.

3. Lead time
Basically 25-30 days

4. Payment terms
30% advance, the balance need to be arranged before the delivery.
The customer need to check the machine before delivery.
